Introduction
Hardware designers in the ever changing worlds of robotics, renewable energy and very-high-tech medical devices have very often to face a dismal reality: they have an amazing concept, but it crashes terribly with the manufacturing reality. The very structure expected to be light turns out to be impossible to make; the thermal aspect is not up to the mark; or one old part that arrives late holds the whole launch for weeks. Such “innovation bottlenecks” stand in the way, slowing down the progress and taking away a lot of the precious time and resources, as the next-generation concepts fall foul of the restrictions of the current production methods.
The root problem centers around the critical mismatch. Hardware inventors need a forward-thinking engineering partner who knows how to implement their innovative design using engineering knowledge, whereas traditional manufacturers think in terms of economies of scale to reduce costs. The answer is to find a creative engineering partner who will help bring their ideas to life. In this piece, the future generation of precision engineering and sheet metal fabrication technologies combined with material science, digital twins, and responsive logistics emerges as the key to unlocking the potential of advanced products, serving as a vital “acceleration engine.”
What Makes “Precision Engineering” the Hidden Constraint in Innovating Hardware?
Innovating hardware does not merely involve electronics and programming but entails developing physical products that embody complicated functionalities, such as dynamic load management, heat dissipation, and hermetic seal. Turning these functional requirements into tangible products that work reliably and effectively is the realm of precision engineering. Precision engineering is often the hidden constraint in innovating hardware because the typical sheet metal fabrication China manufacturing process, which emphasizes efficiency in terms of cost and scale, cannot meet the unique needs of performance-driven innovative projects.
1. Extreme Functional Requirements Demand Innovative Products
Hardware innovations rely on their extreme functional requirements. A robot joint casing, for example, should be exceptionally stiff but lightweight. A battery housing should offer crashworthiness and thermal management capability. Surgical tools need to be biocompatible and sterilizable. These are not commodities but highly-engineered products. Fabrication shops that specialize in manufacturing standardized components will not find it worth considering engaging in extensive research and testing to achieve those functional requirements.
2. Innovation and the Agility of Traditional Manufacturing
The process of designing hardware involves continuous improvement based on test results. The traditional model of manufacturing, due to long lead times for tooling up and inflexible change procedures, is unable to respond to such rapid evolution. As a result, there is a clear innovation agility gap. The development team needs to go through five iterations in five weeks, while a regular supplier would need weeks to produce the first batch of parts. It causes the whole project development to be severely slowed down – as pointed out in discussions of Industry 4.0 and speed in product development.
3. The Overall Cost of Compromising
As a result of the engineering group working with an unpredictable supplier, they end up having to make compromises. If the lack of quality assurance is an issue, one way to deal with it is to over-design a product so that it can meet potential safety issues, which will in turn make it heavier and costlier. On the other hand, the design might be so compromised that the end product becomes a faulty one. Disintegration of a monolithic part into several smaller ones also results in an increased risk of failure.
In What Ways Has the Sheet Metal Industry
Transcended Its Roots in Basic Bending and Shearing?

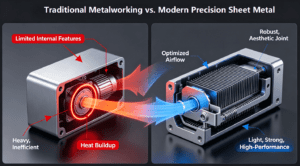

The modern sheet metal industry is a highly advanced technology-based field, far from the simplicity of basic shearing and bending operations. It includes an array of high-precision technologies that allow for the production of highly engineered parts essential for industrial automation systems and clean-tech equipment. Proficiency in these technologies is what makes the construction of complex concepts physically possible.
- High-Dynamic Fiber Laser Cutting Technology: Current laser cutting equipment is not just about creating precise cuts. Advanced fiber laser cutting systems allow for the development of elaborate micro-perforations for efficient cooling, ultra-fine slots for RF protection, and highly complex geometries with tolerances of less than ±0.1mm. Fast and accurate operations reduce heat effects on the material, thus keeping material integrity intact, which is crucial for designing thin and strong alloy parts that are widely used in such fields as drone and medical implant manufacturing.
- Servo-Electric CNC Bending: Smart Bending Process: Contemporary CNC press brakes with servo-electric actuation and real-angle measurement make it possible to perform highly repeatable multi-staged multi-axis bends using one machine. However, even more impressive is their ability to compensate the angle automatically by measuring the current angle in real time and adjusting it until it meets the set point. It eliminates the variability associated with metal spring back and becomes crucial when forming complex sheet metal pieces for robotic arms or instrument frames.
- Cutting-edge joining techniques and composite structures: In addition to advanced cutting and bending technologies, today, the fabrication process incorporates precise welding (including laser, TIG, micro-plasma) to create durable aesthetically pleasing joints, as well as automated riveting and clinching for attaching parts made of different materials or with special coating. As a result, it becomes possible to produce innovative composite structures incorporating different metals and materials in the same product assembly.
How Could Digital Twins & Proactive DFM Help Make the “Unmanufacturable” a Reality?
The connection between an innovative design and a viable part involves data. With the aid of digital twin simulations and proactive DFM, innovation is made less risky. Engineers could virtually test their ideas, optimize their designs, and validate parts for performance and manufacturability without even making a single tool. Thus, ideas and visions considered “unmanufacturable” could be brought into reality in the most practical way possible. This collaboration of digital technology in the front end is the core of modern precision sheet metal manufacturing services.
1. Virtual Prototyping for Performance Validation
Stresses on a robotic chassis subject to loading could be modeled using FEA, thus helping in identifying weaknesses and optimizing material placement. A heat sink design, on the other hand, could be optimized for maximum airflow using CFD modeling. Such testing will enable engineers to validate performance data prior to designing the actual prototype. These tests help reduce costs and time significantly, thus creating robust and innovative custom sheet metal services.
2. Proactive DFM: Engineering for Production Reality
DFM is not a checklist; it is an engineering process. Your manufacturing partner will review your 3D model to find parts that are hard or expensive to manufacture. They may recommend changes such as rounding off an inside corner radius to use standard tooling, selecting an alternate formable material grade, or replacing a welded joint with a folded tab for easy assembly. These are examples of proactive value engineering to make sure that the final design works both functionally and in terms of highly efficient, high-yield manufacturing.
3. The Integrated Digital Thread
The ultimate way to design your parts makes sure that the digital thread is unbroken. You start with your optimized design generated by the FEA and CFD analysis, and the toolpaths for cutting the parts are generated using CAM software. You then simulate the machining process to avoid any tool collisions and minimize cycle times. Finally, you use the same CAD data to program the CMM for inspection. This end-to-end digital process dramatically speeds up time to market and eliminates physical scrap.
What Role Does Advanced Materials & Surface Engineering Have on Next Gen Performance?
The raw metal itself is only the first step. It is through selecting advanced metal alloy compositions, and applying surface engineering, that enables next-generation performance. All of these decisions are based upon material sciences and will dictate the weight, strength, durability, and lifespan of your component, among many other factors. From a lifecycle cost perspective, the best material and surface treatment may be the most cost-effective overall choice, even if not the cheapest upfront.
1. Strategic Material Selection to Ensure Functionality
Making the call on whether you need a 3 series or a 6 series aluminum, or titanium or Inconel is mainly a matter of making sure your part can carry out its intended function. For instance, 6061-T6 aluminum features an excellent strength to weight ratio that makes it the best pick for a structural frame. Titanium, on the other hand, boasts strong corrosion resistance and is also biocompatible, so it is the material of choice for medical implants. Lastly, Inconel is engineered to tolerate very high temperatures in places like jet engines or hydrogen fuel cells.
2. Surface Engineering as a Performance Multiplier
The surface is the surface where the component interacts with its surroundings. Anodizing forms an extremely tough and non-corrosive ceramic coating over aluminum. Micro-arc Oxidation (MAO) results in a thicker tougher coating capable of resisting any form of wear. Physical Vapor Deposition (PVD) involves depositing thin film coatings such as titanium nitride that can be extremely hard or can have particular electrical properties. They are not for decorative purposes but functional coatings used to prevent galvanic corrosion, wear, and electro magnetic interference/ radio frequency interference shielding. They make the products reliable and long lasting.
3. The Total Cost of Ownership (TCO) Perspective
Focusing only on the cost of manufacturing the metal blank from a sheet metal fabricator does not help. Buying a cheaper but uncoated bracket made of mild steel that may rust within a year is much more expensive than using a slightly expensive stainless steel or powder-coated bracket that will last the lifetime of the product. The cooperative partner will do a TCO analysis for both materials and finishes.
Why Are Certifications Such as IATF 16949 Unavoidable for Scaling Innovations?
An innovative product prototype demonstrates an idea, but large-scale and repeatable production establishes a company’s viability. The gap between these stages is filled by comprehensive quality management systems. While ISO 9001 offers a basic structure, other standards such as IATF 16949 (automotive) and AS9100D (aerospace) require the exact preventive measures to guarantee a large batch of a hundred products will work equally well as the first prototype. For a scaling startup, these certifications are not bureaucratic procedures but the operating system for sustainable expansion and the highest level of supply chain optimization.
1. Advanced Product Quality Planning: Avoiding Quality Escapes at Scale
The IATF 16949 certification requires organizations to implement advanced product quality planning (APQP). This methodology includes creating a design Failure Mode and Effects Analysis (FMEA) (what failures can this product have? ), a process FMEA (what manufacturing steps can cause the failure? ), and both types of FMEA control measure design. Adoption of this system will help a business avoid the stunning and possibly very expensive quality problems they could encounter after investing in the making of high-volume molds. Avoiding such major failures is what makes APQP a key part of a quality assurance for businesses in the startup stage looking to scale.
2. Production Part Approval Process: The Gateway to Volume
At the end of APQP, there comes the Production Part Approval Process (PPAP). It is an extensive document containing material certification, measurement results, process control plan, and sample approval. In other words, it proves beyond doubt that the manufacturing process used is reliable enough to produce required parts of uniform quality. Submission of such documentation to customers and investors alike guarantees them the highest confidence and removes all risks associated with the shift to the volumes of production.
3. Institutionalizing a Culture of Prevention
Certifications described above help build a culture of continual improvement and prevention. These certifications require implementation of corrective actions, internal auditing, and management review procedures. Thus, the whole organization will be obligated to make improvements after every mistake it makes. When working with a manufacturer, such as P&G that operates in a culture like this, you will be dealing not only with your parts but with a constantly evolving and improving system that is the ultimate asset to have for any innovation.
What’s the Secret of Working with a Manufacturer Speaking the “Lingo” of Both R&D and Scale-Up?
The most valuable manufacturing partner will have a “dual-mode” capability. It implies that they will be able to combine agility and curiosity typical of R&D work with discipline and analytical rigor of high-volume manufacturing. Such a partner will become an extension of your team, who knows how to talk technical risks and build validation plans in a bidirectional manner between development and manufacturing stages. Having found such a partner becomes an asset in terms of developing your own innovation capabilities through the supply chain.
- Assessing Prototyping Agility and Engineering Dialogue: In your assessment, review their rapid prototyping and low volume manufacturing strategy. Are they able to provide you with fast quotes and sample parts via digital or soft tooling technology? Even more telling, put them through their paces with an engineering question. Do they inquire about load scenarios, environment, or failure mechanisms? Can they solve problems through physics and analytics? This level of collaborative problem solving in prototyping is the first indication that they can add value to your product development process.
Evaluating Production Scalability and Systemic Control: Ask for their ability to manufacture on volume. Ask them to provide you with a Cpk report from one of their volume runs. Find out how they track material traceability and statistical process control (SPC). They should know these things cold because they’ll need it when they start scaling up production. They should be able to explain how they bring your part from “prototyping cell” into dedicated high-volume lines.
Creating a Relationship through Vision and Mutual Growth: The best partnerships align themselves around long-term success. Your manufacturing partner should care about the success of your product in the market as a proof point for their capabilities. They should be aware of the challenges of raising funding and bringing products to market quickly in the startup and scaleup world. What you are looking for is a partner who helps you optimize processes, share insights with you, and sees your success as their success. That elevates them above being a mere producer of high-precision sheet metal parts.
Conclusion
Those who will thrive in the deep tech race will be the ones who perfectly blend the most up-to-date scientific understanding with excellent manufacturing technology. By adopting a new manufacturing method for precision sheet metal production that integrates digital simulation, material science breakthroughs, and quality control at each step, the pioneer is able to lower the risk of the lengthy time from a laboratory breakthrough to a reliable product. This way, manufacturing is no longer just a necessary yet expensive function but is turned into a very important element of the company’s strategy, a forceful enhancer of innovation.
FAQs
Q: We’re a seed stage company with a complicated design for a robot arm prototype. Is “high-precision” manufacturing a viable choice at this point?
A: High-precision manufacturing is worth considering as a safety measure for complex function prototypes, even if it adds some costs per unit. It gives you precise information about performance, which is crucial during prototyping. There are many cost-effective, low-volume manufacturing technologies for precision sheet metals that will prevent you from wasting time and money on false testing results and subsequent redesigns.
Q: We need a light yet highly heat resistant housing for our clean tech device. How should we proceed?
A: The solution lies in a combined approach to the problem. For instance, the design could include high-precision laser cutting of heat fins or perforated micro holes out of a heat-resistant metal such as 6061 aluminum. In cases of extreme heat resistance requirements, custom sheet metal services could incorporate heat pipes or cooling compartments into the design.
Q: How do we make the transition from 50 proto parts to 5,000 production parts without a redesign?
A: The perfect transition is planned upfront. Prototypes are designed using DFM principles to choose manufacturing grade materials and design for high-speed tooling. Then, once a manufacturing partner that aligns with IATF 16949 standards is chosen, a PPAP will be done, thereby assuring that the mass-produced parts perform just like those prototypes, thus making for a trouble-free transition.
Q: We need to certify our device. Will choosing an ISO 13485 certified sheet metal fabricator expedite this process?
A: Yes, certainly. Working with an ISO 13485 certified sheet metal fabrication company can help you get certified faster. They can help you document your entire quality system, thereby reducing the risk of failure of your certification process during the supply chain audits.
Q: How do we ensure that we receive a realistic cost forecast at the very beginning of the design stage?
A: Consult with a manufacturer when it comes to the costs during the design process. Present your ideas and let the manufacturer know what cost of sheet metal fabrication you hope to achieve. A good manufacturer will offer you a cost driver analysis that identifies the costly factors in your design.
